Understanding The Basics of The RC System

A Radio Control (RC) system is a technology setup that allows users to control vehicles, robots, drones, or other models from a distance. Whether used in RC cars, airplanes, boats, or robotics projects, the system relies on several essential components working together seamlessly. The four main parts include the transmitter, receiver, servos or motors, and the power supply.

1. Transmitter (Tx)

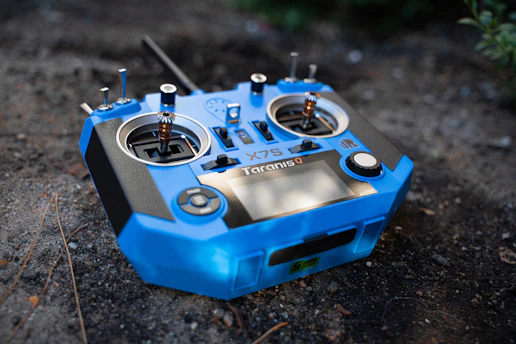

The transmitter is the handheld device operated by the user. It converts physical input—such as joystick movements, steering wheels, or switches—into wireless radio signals that are sent to the model.

Key features include:

• Channels: Each channel controls a separate function. For example, an RC car typically requires two channels: one for steering and another for acceleration or braking.

• Frequency: Modern RC transmitters commonly use the 2.4 GHz frequency band, which minimizes signal interference and supports automatic frequency switching for stable communication.

2. Receiver (Rx)

The receiver is installed inside the RC model and acts as the communication bridge between the transmitter and the moving components. Its role is to capture incoming radio signals and distribute commands to the appropriate devices.

Important points about receivers:

• They contain multiple output ports called channels.

• Each channel connects to a specific component, such as a steering servo or speed controller.

• The number of receiver channels usually matches the transmitter’s capabilities.

3. Servos and Motors

Servos and motors are responsible for creating movement in the RC model according to the commands received.

Servos

Servos are compact motors designed for accurate angular movement. They are mainly used for:

• Steering systems in RC cars

• Control surfaces in aircraft, including rudders and ailerons

• Precise movement applications in robotics

Motors

Motors provide the driving force that powers the model’s movement. In electric RC systems, motors are managed by an Electronic Speed Controller (ESC), which regulates speed and power based on throttle input from the receiver.

4. Power Supply

Every RC system requires a reliable power source to keep its electronics functioning properly.

Common power arrangements include:

• Transmitter Batteries: Usually powered by AA batteries or rechargeable battery packs such as LiPo or NiMH.

• Vehicle Batteries: Supply power to the receiver, servos, and drive motor. In electric RC vehicles, the main battery often powers the motor through the ESC while simultaneously supporting onboard electronics.

How All Components Work Together

When the user moves the controls on the transmitter, radio signals are sent wirelessly to the receiver inside the model. The receiver interprets these signals and directs the servos or motors to perform the requested action. Power from the batteries ensures every component operates smoothly, resulting in precise remote control of the vehicle or device.
